- Model Number: EACBDC
- Type: Mini
- Brand Name: EARUELETRIC
- Origin: Mainland China
- Certification: CE
- Pole number: 2P
- Breaking current: 4500

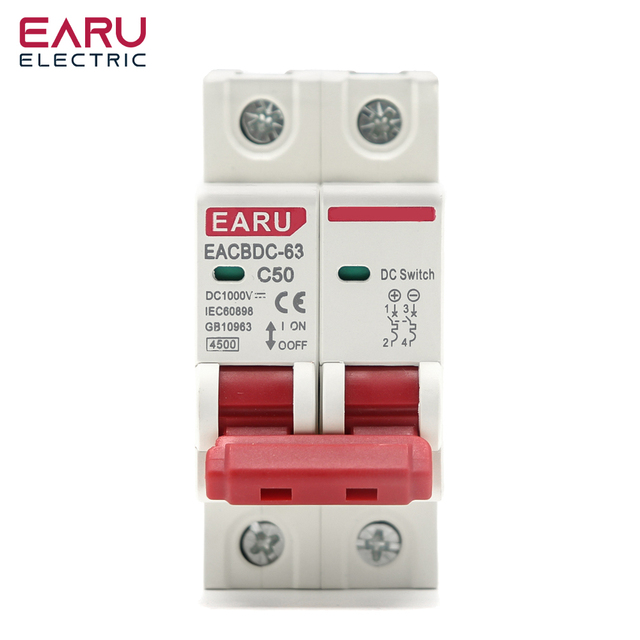

DC 1000V Solar Mini Circuit Breaker Overload Protection Switch 2P DC1000V Photovoltaic MCB PV
Our factory can offer OEM/ODM Service,
if you need to circuit breaker with your logo,
feel free to contact the seller!
Application
EACBDC-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage is 250V
for 1 Pole. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and
electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In
present China, our products in the case grade rating voltage is highest compared to the same products. Products
according IEC60898-1, GB14048.2 standard.
Specificaatios
|
Standard |
EN60898(IEC60898) IEC60947-2 |
|
Rated current |
1-63A |
|
Rated Breaking capacity |
6.0kA IEC60898(0.5~63A) |
|
Characteristic curve |
B,C,D |
|
Max. fuse that can be connected to |
100AgL(>10kA) |
|
Selective grade |
3 |
|
Working ambient temperature |
–10℃ ~+40℃ |
|
Enclosed protective class |
IP20 |
|
Electrical life |
Not less than 8000 times |
|
Mechanical life |
Not less than 20000 times |
